Calitate înaltă POWER METER SRAM QUARQ AXS DZERO XX1 EAGLE DUB 104BCD

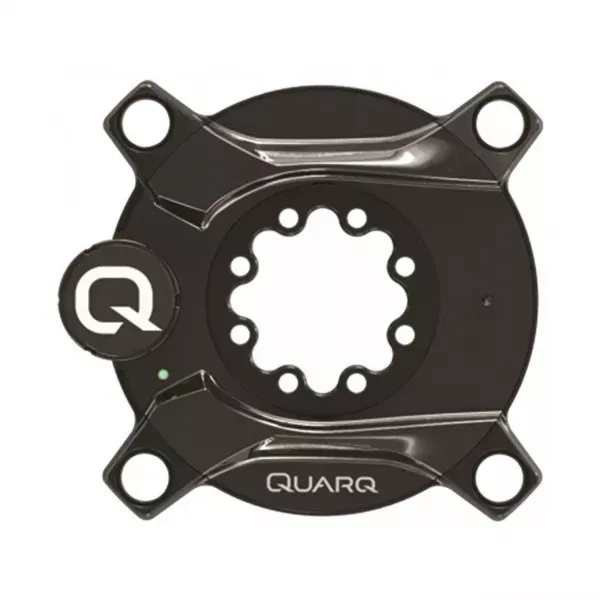

The QUARQ Eagle DUB power meter spider for non-Boost bikes completes your SRAM Eagle XX1 groupset with what it still lacks: power measurement! It works with DZero technology, which has proven itself over the years and has such practical features as automatic calibration, temperature compensation and integrated cadence sensors. Performance data is measured on both sides with an accuracy of 1.5 %. In addition, the power meter is of course equipped with ANT+ and Bluetooth. All you need to get started is the XX1 Eagle DUB crank with 8-bolt interface and the matching X-Sync 2 chainring with 104 mm bolt circle.

• – 8-bolt interface
• – DUB: stronger, stiffer, lighter
• – spider produces a standard chainline (non-Boost)
• – double-sided power measurement
• – tool-free battery change
• – 10K temperature compensation (programmed with over 10,000 data points)
• – no cadence magnet required thanks to AxCad (multi-axis acceleration sensor)
• – automatic recalibration while riding
• – easy chainring change without recalibration

QUARQ Operating Principle
The crankset forms the heart of your bike. Their only task is to convert the force of both legs into forward motion – the perfect place to measure performance.
Power meters calculate power by measuring torque (pedal force) and angular velocity (cadence). Power = torque x cadence. When you pedal, all parts of the bicycle drivetrain shift (bend) slightly under the load. Power meters are designed using FE analysis so that these displacements take place in a very controlled manner and at specific locations in relation to the applied load. Strain gauges are used to measure this displacement and calculate the applied torque. Reed switches are used to calculate the cadence.
DZero
DZero is QUARQ’s next generation power meter, named after the DZero Experiment, one of the most accurate and innovative scientific projects to discover subatomic particles. With a revised measurement loop, optimised strain gauge design, increased accuracy and the features of the Qualvin and SRAM AXS app, DZero represents the state of the art in power meter technology. You can choose between Bluetooth LE and ANT+ technology for data transfer.
OmniCal™
The power measurement depends on the choice of the right chainring. Change the chainring without loss of accuracy. No recalibration necessary.
MagicZero™
Calibration takes place automatically during the ride. You don’t need to pedal backwards or perform a manual calibration from your computer.
