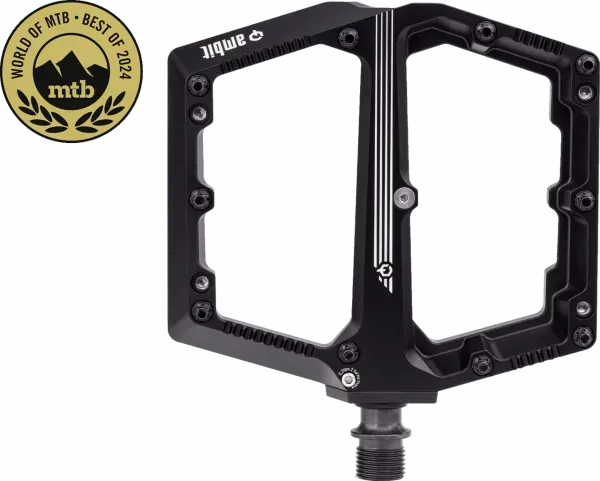

PEDALE AMBIT ENDURO LIMITED EDITION HAXN HOITA MEDIUM Matt Black Doar azi

Ambit®The Ambit® Flat Pedal „HAXN HOITA” has been developed to meet the highest demands and combines state-of-the-art technology with uncompromising functionality. Manufactured in Oberammergau on high-precision five-axis CNC machines, it impresses with its quality and innovation – 100% „Made in Bavaria”.
The HAXN HOITA was specially designed for the needs of MTB enduro and slopestyle riders and has been thoroughly tested on in-house test benches, in the field and during competitions. The result: maximum resilience and outstanding durability.

– Rotation brake for precise control
Thanks to the patented, stepless rotation brake, the rotational movement of the pedal can be individually adjusted. This function offers a high degree of control and safety, whether for slopestyle or technical jumps. The adjustment is made simply with an Allen key.
– Ambit® pins for maximum grip
The specially designed pins guarantee superior grip in all conditions. For more individuality, the pins can be exchanged for classic grub screws to adapt the grip perfectly to the riding style.

– Easy maintenance with the „Service Screw” system
The patented „Service Screw” system enables quick and easy maintenance: the entire pedal axle can be dismantled and serviced in no time at all with just three screws.
– Felt seal for maximum durability
The integrated felt seal effectively protects the pedal’s internal components from dirt and moisture. This maintains functionality even under the toughest conditions and significantly extends the service life.
– Inclined position for ergonomic riding
The HAXN HOITA has an innovative geometry with its 1° incline. Ambit® athletes confirm better power transmission, reduced fatigue and noticeably increased riding comfort – especially during long and intensive rides.

– Material pedal body: aluminum (AL7075)
– Material axle: steel (42CrMo4) nitrided
– Bearing: one IGUS plain bearing 12x15mm, two industrial bearings
– Seals: 3mm felt ring, INA shaft seal 3×12
– Overall height: 18 mm (axle, without pin), 14 mm (outer, without pin)
– Q-factor: 57 mm
– Dimensions Size L: (L x W): 123 mm x 124 mm (outer dimension) / 116 mm x 110 mm (footprint)
– Dimensions Size M: (L x W): 113 mm x 114 mm (outer dimension) / 106 mm x 100 mm (footprint)
– Number of pins per footprint: 10
– Pin height: 5 mm, optional 4 mm
– Weight: 385 g (pair without pins, size M), 416 g (per pair without pins, size L)
Patent pending!
